Cameras, controllers & Capture Devices
DVDO-C4-1
Full HD PTZ Camera with HDMI/IP/3G-SDI/USB & AI Auto Tracking. Available in Black or White
DVDO-C5-1-NDI
4K NDI PTZ Camera with HDMI/IP/3G-SDI/USB & AI Auto Tracking. Available in Black or White
DVDO-C5-1
4K PTZ Camera with HDMI/IP/3G-SDI/USB & AI Auto Tracking. Available in Black or White

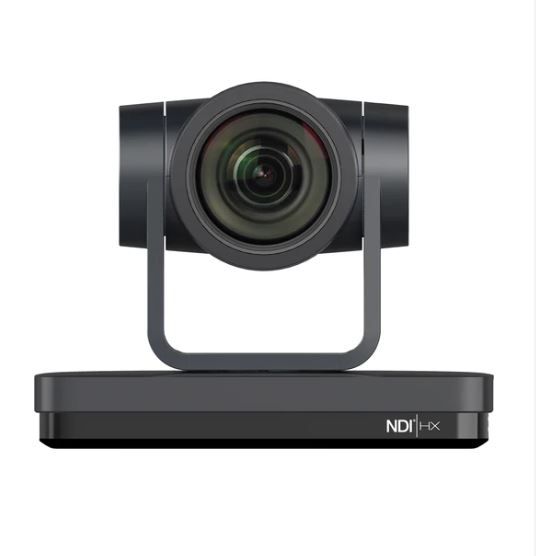

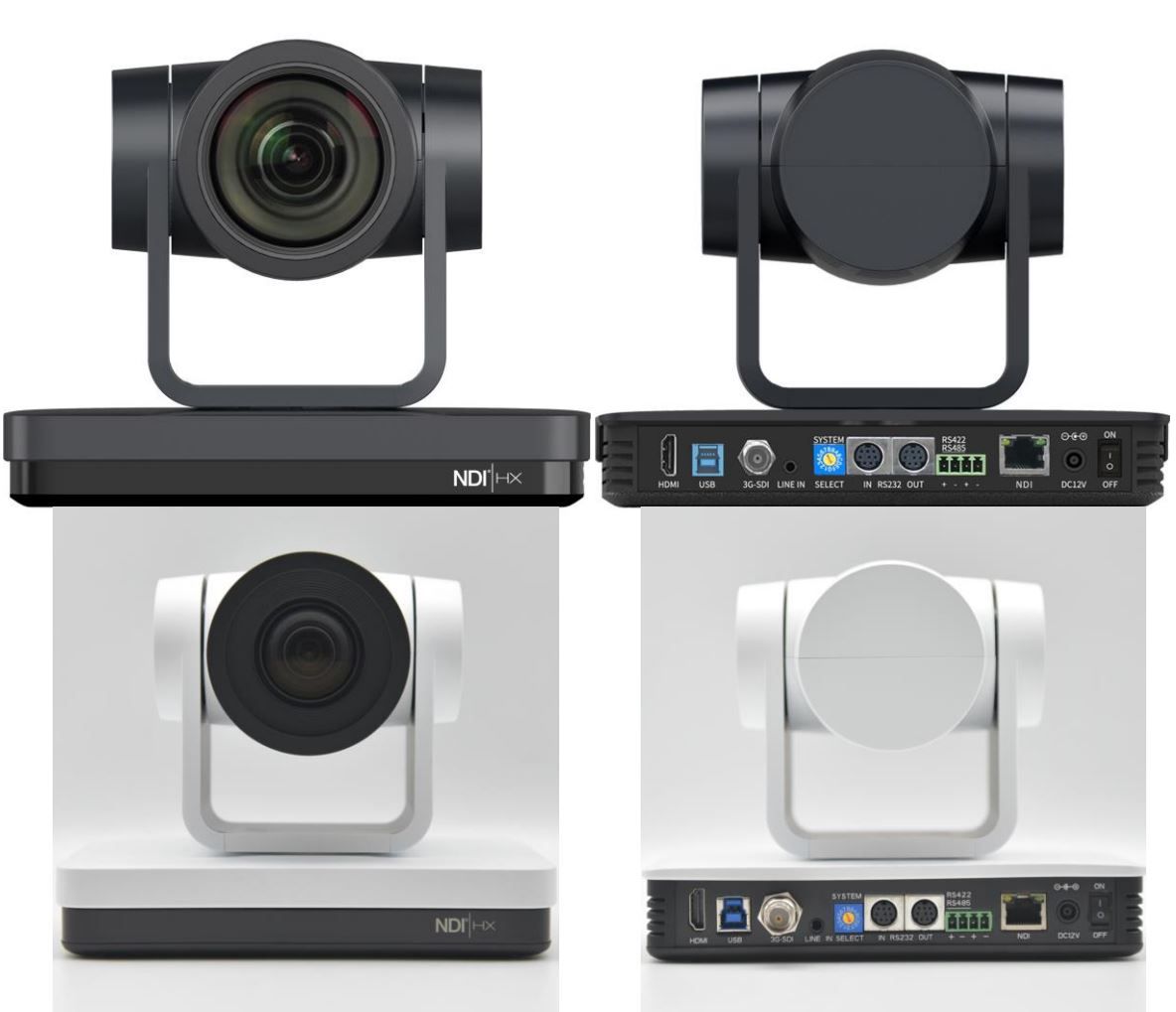

DVDO-C4-1-NDI
• Available in Black or White.
• Full HD Resolution 1920x1080 60 fps: 1/2.8-inch-high quality CMOS sensor.
• 20X Optical Zoom Lens.
• NDI Capable.
• Multiple video output interfaces: HDMI, SDI, USB3.0, LAN.
• Simultaneously output for audio and video signal via HDMI, SDI and LAN. LAN interface support POE, USB 3.0 support dual code stream, SDI support transmission up to 100m under 1080P60 format.
• USB3.0 Support Dual Coding Stream: Support mainstream and sub – stream, and simultaneous output; support YUY2, MJPEG, H.264, NV12, H.265 video coding format.
• Multiple Network Protocol: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT protocols.
• Control Interface: RS422 is compatible with RS485, RS232-IN, RS232-OUT, and the RS232 interface supports cascading.
• Multiple Control Protocol: Support VISCA,PELCO-D,PELCO-P protocols
• AI Human Detection.

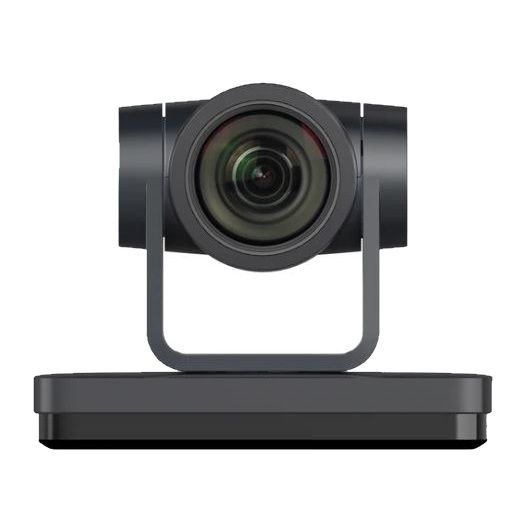

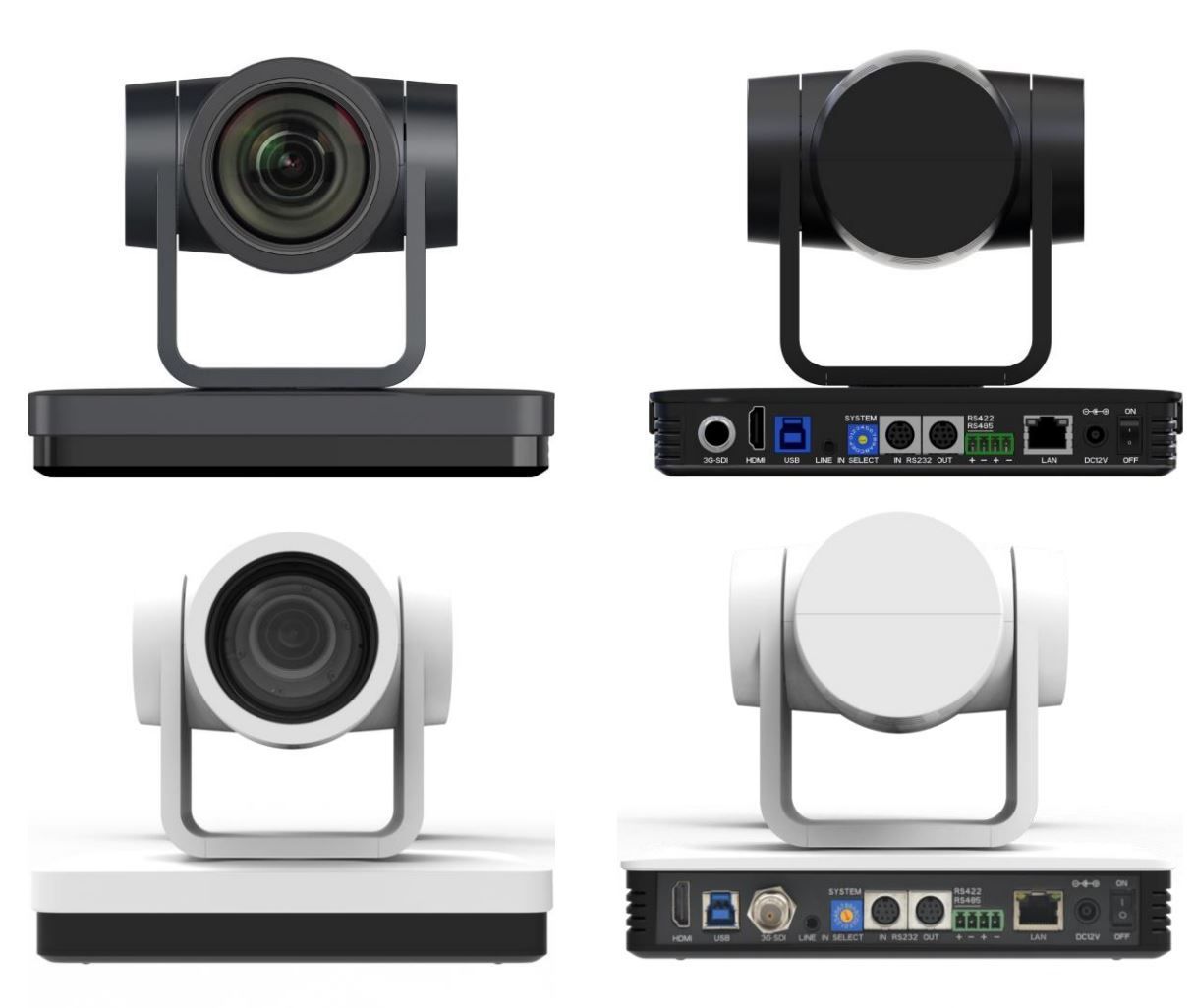

DVDO-C4-1
• Available in Black or White.
• Full HD Resolution 1920x1080 60 fps: 1/2.8 inch high quality CMOS sensor.
• 20X Optical Zoom Lens.
• Multiple video output interfaces: HDMI, SDI, USB3.0, LAN.
• Simultaneously output for audio and video signal via HDMI, SDI and LAN. LAN interface support POE, USB 3.0 support dual code stream, SDI support transmission up to 100m under 1080P60 format.
• USB3.0 Support Dual Coding Stream: Support mainstream and sub –stream, and simultaneous output; support YUY2, MJPEG, H.264, NV12, H.265 video coding format.
• Multiple Network Protocol: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT protocols.
• Control Interface: RS422 is compatible with RS485, RS232-IN, RS232-OUT, and the RS232 interface supports cascading.
• Multiple Control Protocol: Support VISCA,PELCO-D,PELCO-P protocols
• AI Human Detection

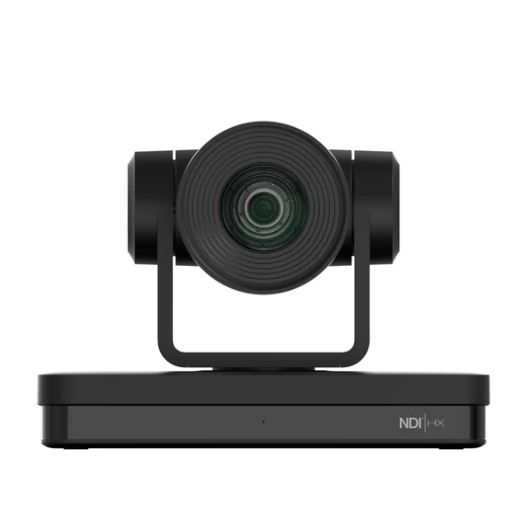

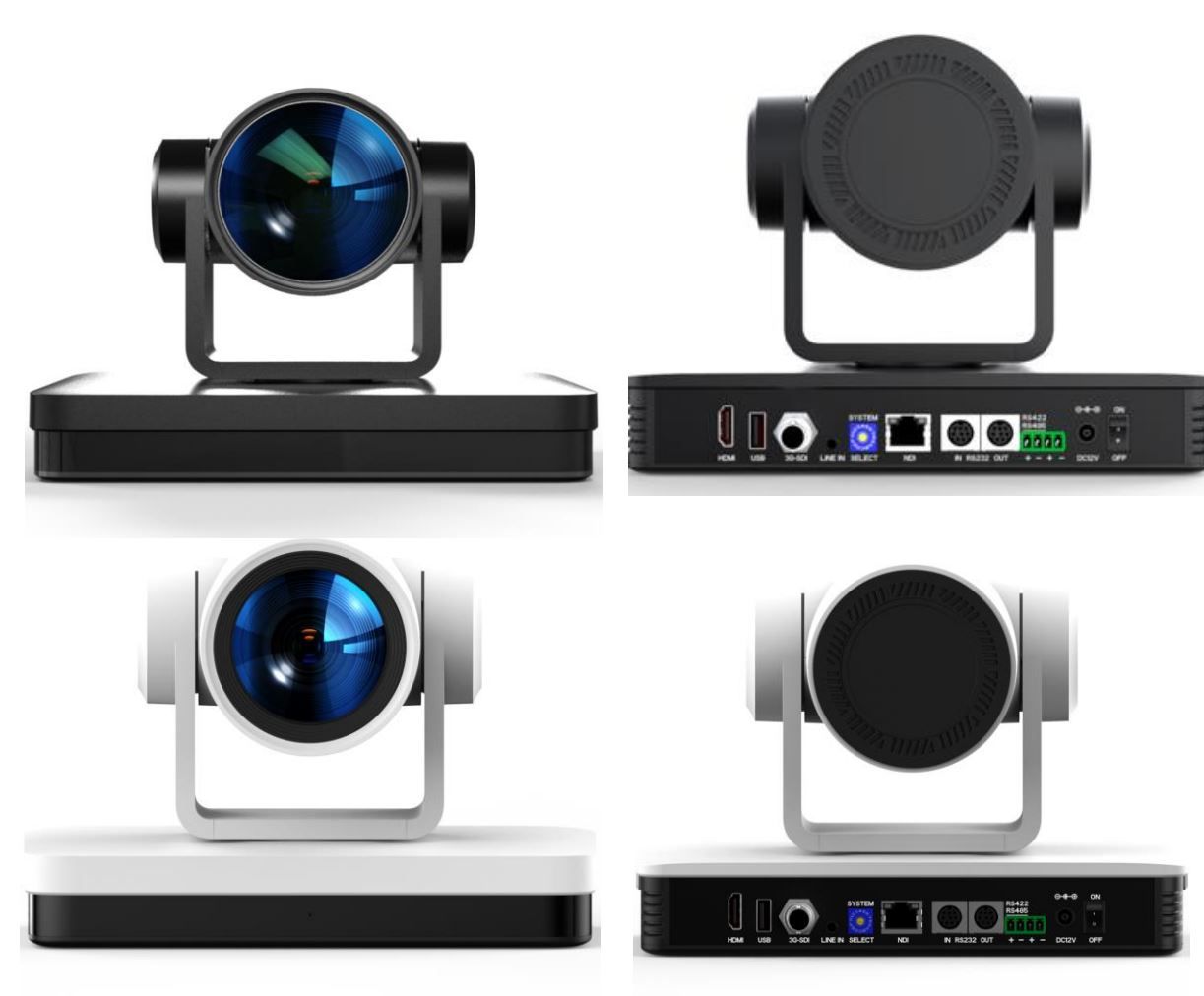

DVDO-C5-1-NDI
• Available in Black or White.
• 4K 60 fps UHD Resolution: SONY CMOS sensor.
• NDI Capable.
• Dual Stream Output: USB support the mainstream and sub stream output at the same time.
• 25X Optical Zoom Len: 59.2°wide-angle lens.
• Interfaces: Support HDMI, SDI, USB 2.0, LAN, and HDMI, USB, LAN output
• 4K audio and video at the same time.
• Multiple Audio/Video Compression Standards: LAN interface supports H.264/H.265 video compression, USB2.0 interface supports MJPG, H264, YUY2, NV12, H265; A-IN interface supports AAC audio compression coding.
• Audio Input Interface: 8000, 16000, 32000, 44100, 48000 sampling frequency. support AAC audio compression.
• Multiple Network Protocol: Support ONVIF, GB/T28181, RTSP, RTMP protocols; Support RTMP push mode. Support RTP multicast mode; Support network full command VISCA control protocol.
• Control Interface: RS422 input(compatible with RS485), RS232 input/output, RS232 (cascade connection).
• Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols.
• AI Human Detection: Built-in high-speed processor and advanced image processing and analysis algorithm, and real-time tracking and zone tracking modes.

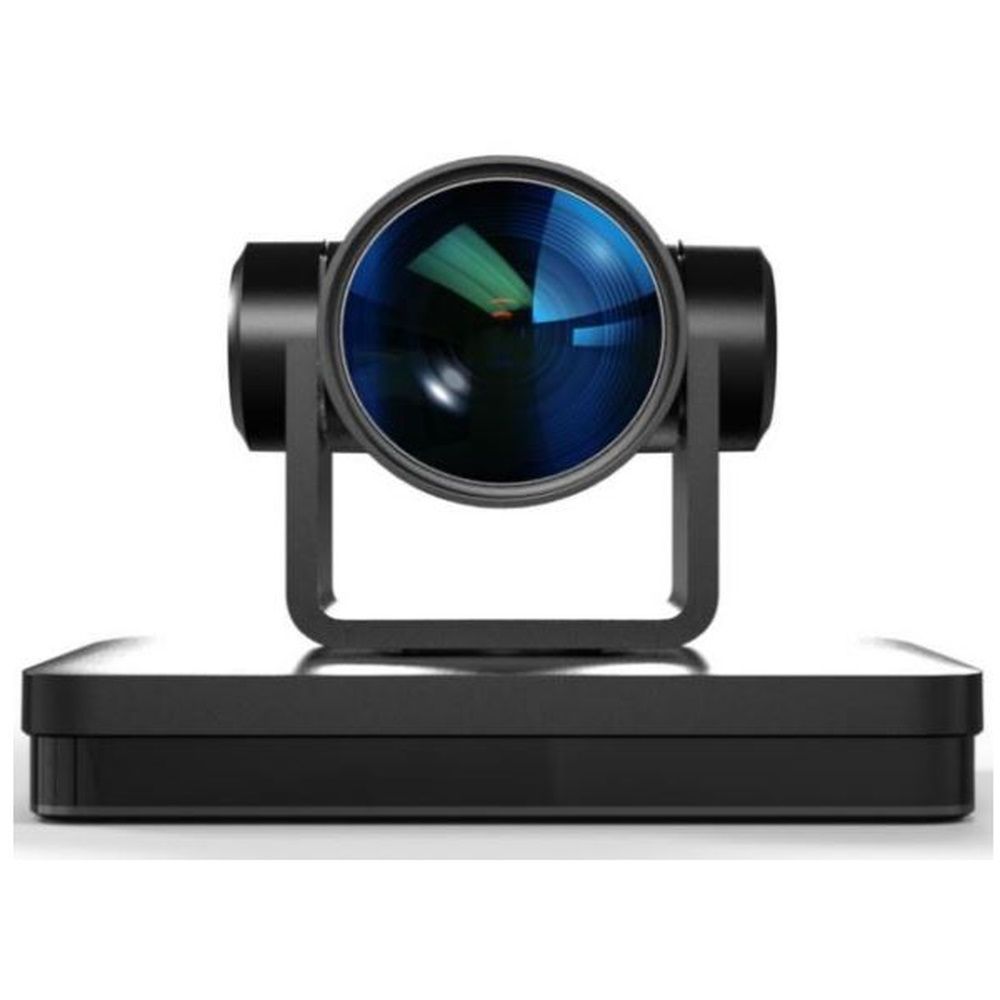

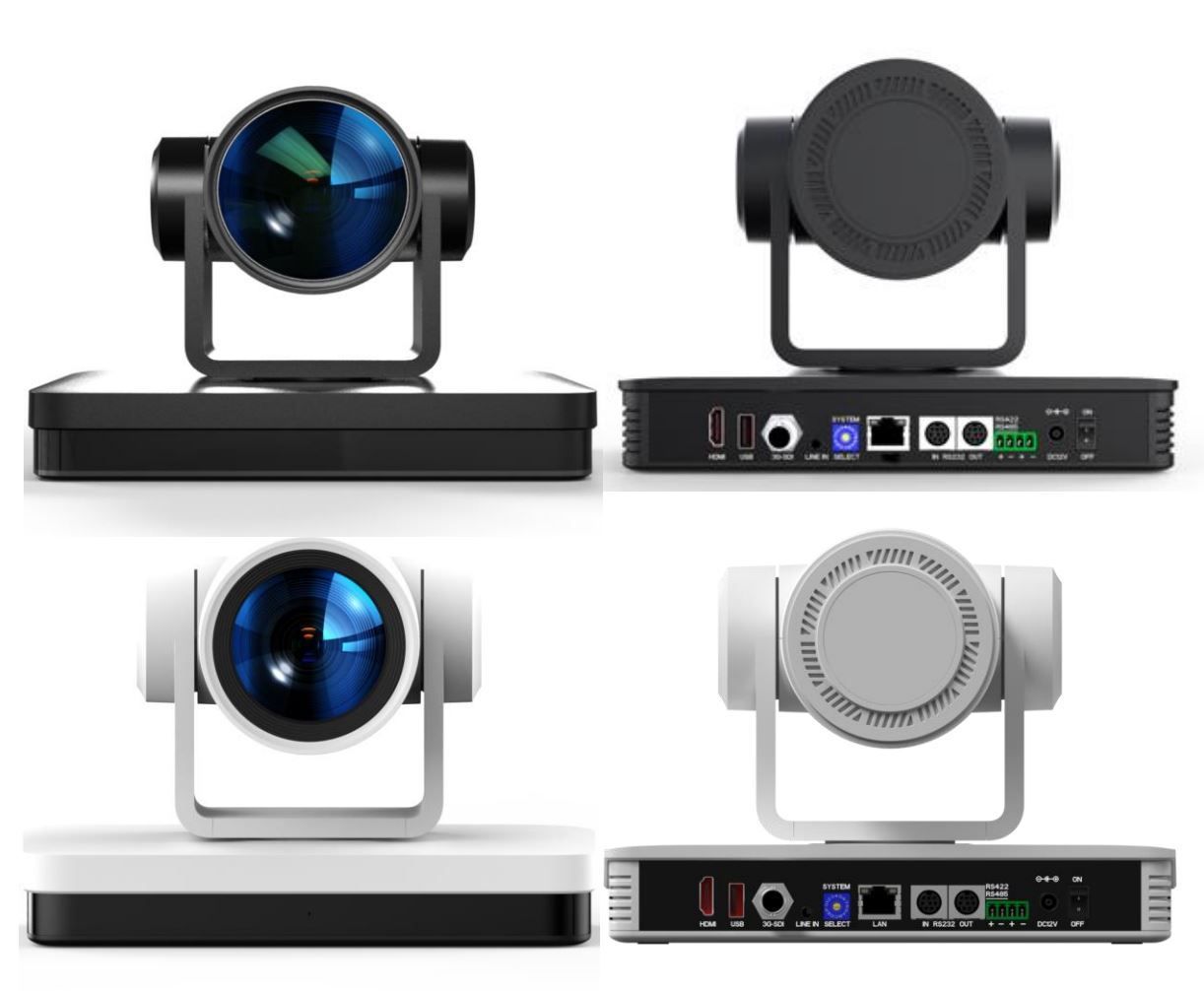

DVDO-C5-1
• Available in Black or White.
• 4K 60 fps UHD Resolution: SONY CMOS sensor.
• Dual Stream Output: USB support the mainstream and sub stream output at the same time.
• 25X Optical Zoom Len: 59.2°wide-angle lens • Interfaces: Support HDMI, SDI, USB 2.0, LAN, and HDMI, USB, LAN output
• 4K audio and video at the same time.
• Multiple Audio/Video Compression Standards: LAN interface supports H.264/H.265 video compression, USB2.0 interface supports MJPG, H264, YUY2, NV12, H265; A-IN interface supports AAC audio compression coding.
• Audio Input Interface: 8000, 16000, 32000, 44100, 48000 sampling frequency. support AAC audio compression.
• Multiple Network Protocol: Support ONVIF, GB/T28181, RTSP, RTMP protocols; Support RTMP push mode. Support RTP multicast mode; Support network full command VISCA control protocol.
• Control Interface: RS422 input(compatible with RS485), RS232 input/output, RS232 (cascade connection).
• Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
• AI Human Detection: Built-in high-speed processor and advanced image processing and analysis algorithm, and real-time tracking and zone tracking

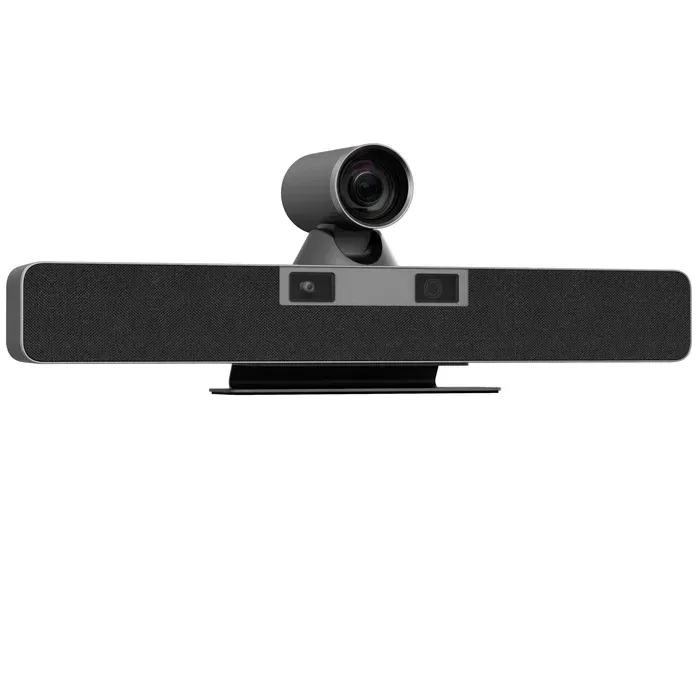

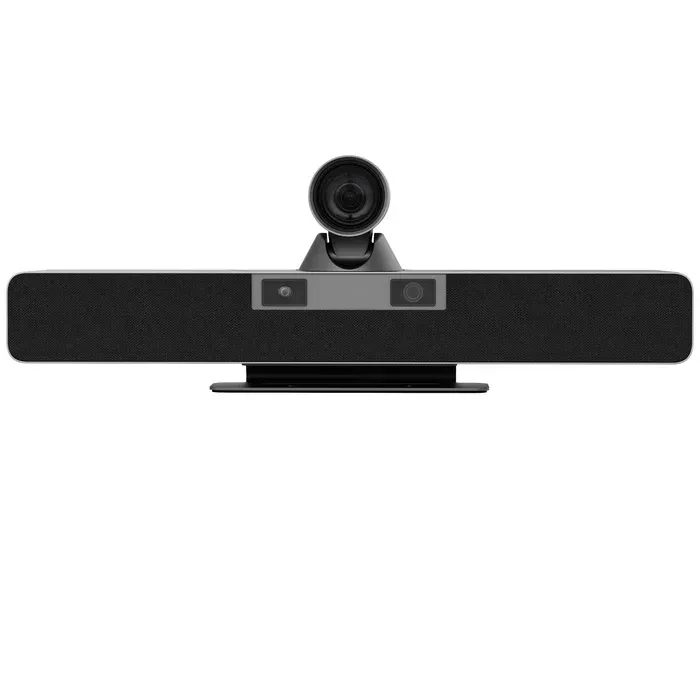

DVDO-C6DL-1-G
- 4K dual lens design combing PTZ camera with 12X optical zoom & fixed-focus 120° panoramic lens
- Close-up PTZ camera features 4K UHD 1/2.5-inch CMOS sensor, 71° horizontal FOV, ±90° horizontal rotation & ±23° vertical rotation
- 6 built-in beamforming microphones (BF) and full-range high-fidelity speaker
- Advanced 3A audio technologies: Acoustic Echo Cancellation (AEC), Automatic Gain Control (AGC) & Active Noise Suppression (ANS)
- Advanced connectivity including USB 3.0, HDMI & LAN ports
- Up to 3 cascading extension microphones over LAN (PoE)
- AI technologies: speaker voice tracking, auto framing & smart gallery
- Built-in Wi-Fi module for wireless BYOM & BYOD
- Network control protocols: VISCA, RTSP & HTTP
- Intuitive web interface for camera configuration / control and content preview
- Flexible installation options: tabletop, wall & TV mounting

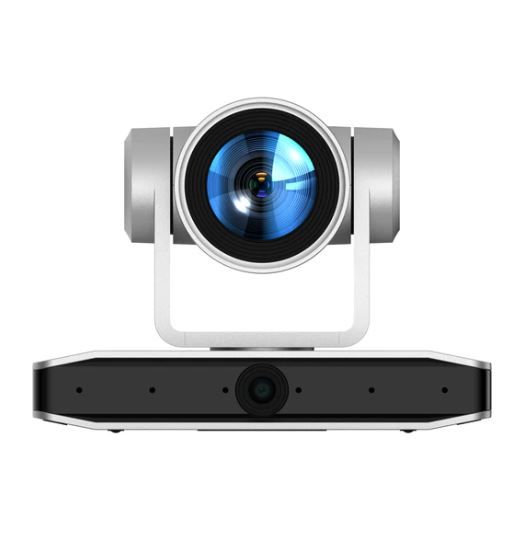

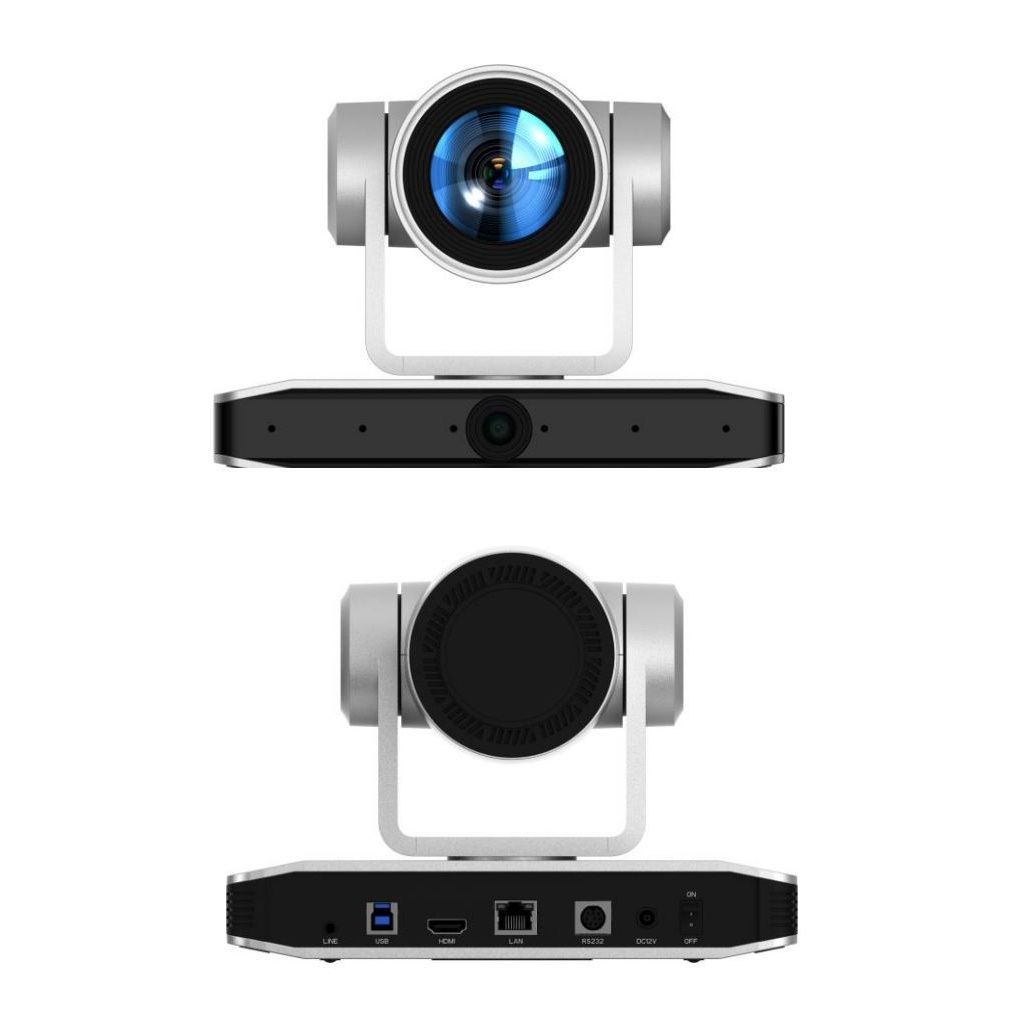

DVDO-C7-1-S
• 4K UHD Resolution: Adopting 8.5 million resolution SONY CMOS sensor. Maximum resolution is up to 4K with frame rate up to 30fps.
• Optical Zoom Lens: 12X optical zoom 80.5°wide-angle lens.
• Multiple Video Output Methods: Support HDMI, USB3.0, wired LAN interface; support POE power supply, USB3.0 supports dual stream. • Multiple Audio/Video Compression Standards: Support YUY2, MJPEG, H.264, H.265, NV12 video encoding formats, MJPEG, H.264, H.265 support up to 3840×2160 resolution 30 frames/second compression; support AAC, MP3, G.711A audio compression
• Audio Input Interface: Support AAC, MP3, G.711A audio encoding, AAC, MP3 encoding support 16000, 32000, 44100, 48000 sampling frequency.
• Multiple Network Protocol: Support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT protocols; support RTMP push mode, easily link streaming media servers (Wowza, FMS); support RTP multicast mode.
• Control Interface: RS232 IN
• Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
• Auto Framing: Built-in high-speed processor and face detection algorithm, it can automatically detect the participants to provide optimal framing.
• Intelligent Voice Tracking: Built in 6 omnidirectional mics arrays, intelligent voice localization algorithm, it can track the speaker in the real time.

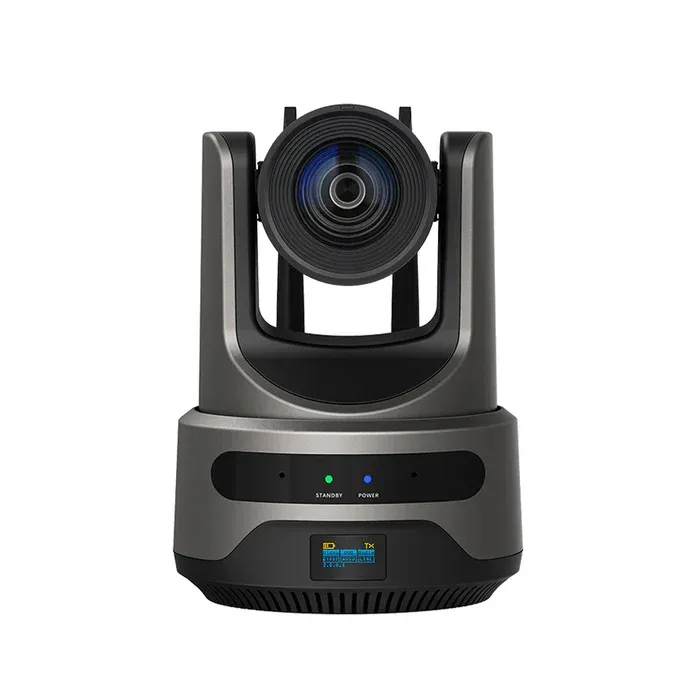

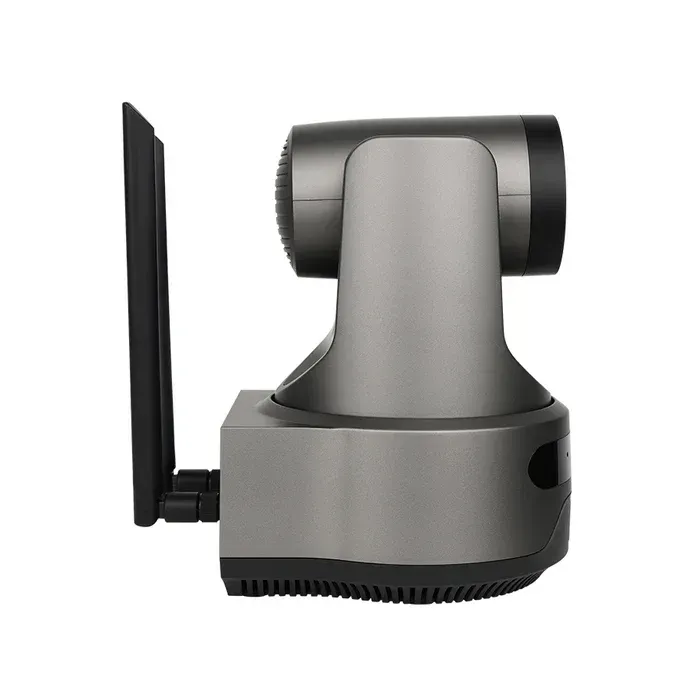

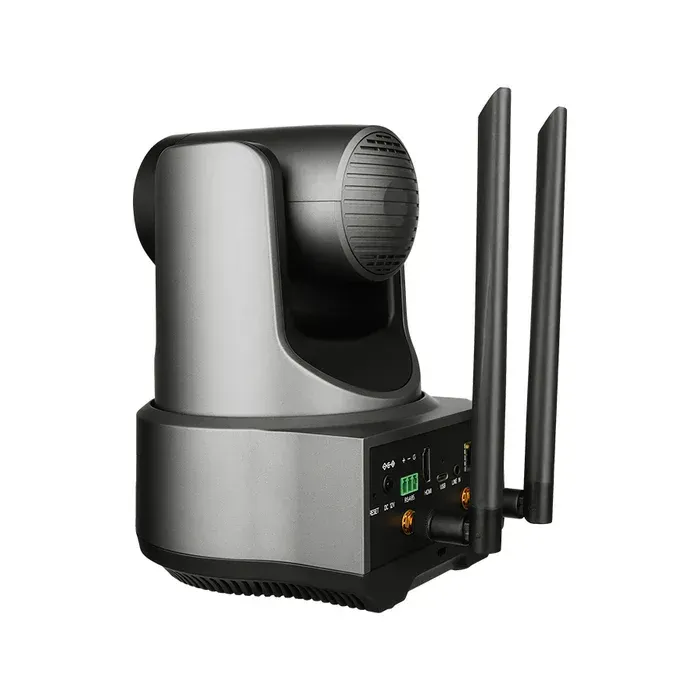

DVDO-C7WIFI-1-G
- High quality 4K UHD 1/1.8-inch CMOS sensor
- 20X optical zoom, 16X digital zoom
- 60° horizontal Field of View (FOV)
- AI human auto-tracking
- 300Mbps wireless transmission up to 200m/650ft using 2x2 MIMO and beamforming technology
- Advanced connectivity including USB 3.0 (Type-C), HDMI, LAN and audio line-in ports
- Two built-in microphones
- Built-in OLED display showing output resolution, battery level, wireless signal strength, camera status, IP address,…
- Large capacity 9450mAh lithium battery with up to 6 hours of autonomy
- IP video compression: H.265 / H.264 / MJEPG with first (3840×2160) and second (1920×1080) streams
- IP control protocols: TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast
DVDO-C7WIFI-1-NDI-G
- High quality 4K UHD 1/1.8-inch CMOS sensor
- 20X optical zoom, 16X digital zoom
- 60° horizontal Field of View (FOV)
- AI human auto-tracking
- 300Mbps wireless transmission up to 200m/650ft using 2x2 MIMO and beamforming technology
- Advanced connectivity including USB 3.0 (Type-C), HDMI, LAN and audio line-in ports
- Two built-in microphones
- Built-in OLED display showing output resolution, battery level, wireless signal strength, camera status, IP address,…
- Large capacity 9450mAh lithium battery with up to 6 hours of autonomy
- IP video compression: H.265 / H.264 / MJEPG with first (3840×2160) and second (1920×1080) streams
- IP control protocols: TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast, NDI-HX

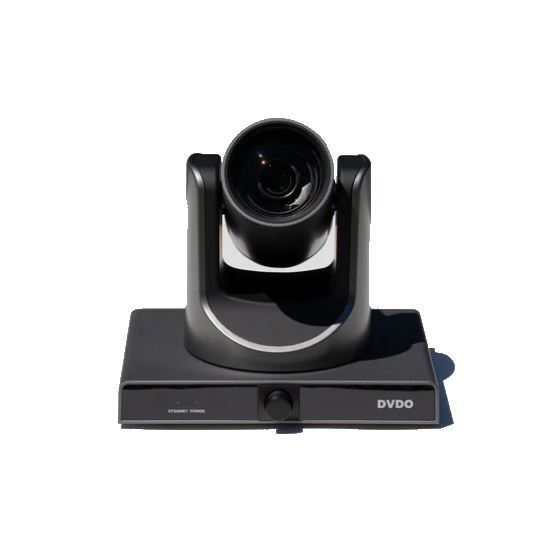

DVDO-C3-1
• Professional HD PTZ Camera, HDMI and IP Connections Intelligent tracking
• Video System 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50
• Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
• Scanning Mode Progressive
• Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 • Digital zoom 16x
• Minimal Illumination 0.5Lux @ (F1.8, AGC ON)
• Shutter 1/30s ~ 1/10000s
• White Balance Auto, Indoor, Outdoor, One Push, Manual, Specified color temperature
• Backlight Compensation Support
• Digital Noise Reduction 2D&3D Digital Noise Reduction
• Video S/N ≥55dB
• Horizontal Angle of View 72.5° ~ 6.9°
• Vertical Angle of View 44.8° ~ 3.9°
• Horizontal Rotation Range ±170°
• Vertical Rotation Range -30° ~ +90°
• H & V Flip Support
• Image Freeze Support
• Number of Preset 255

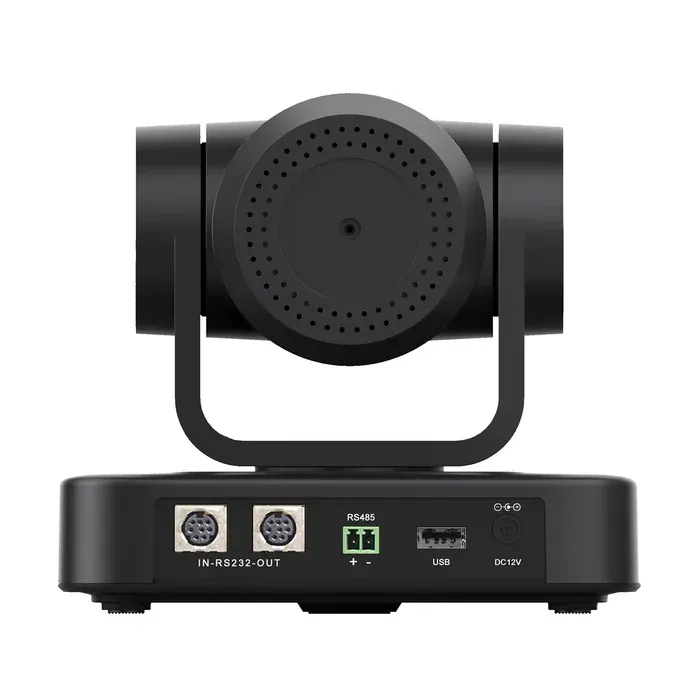

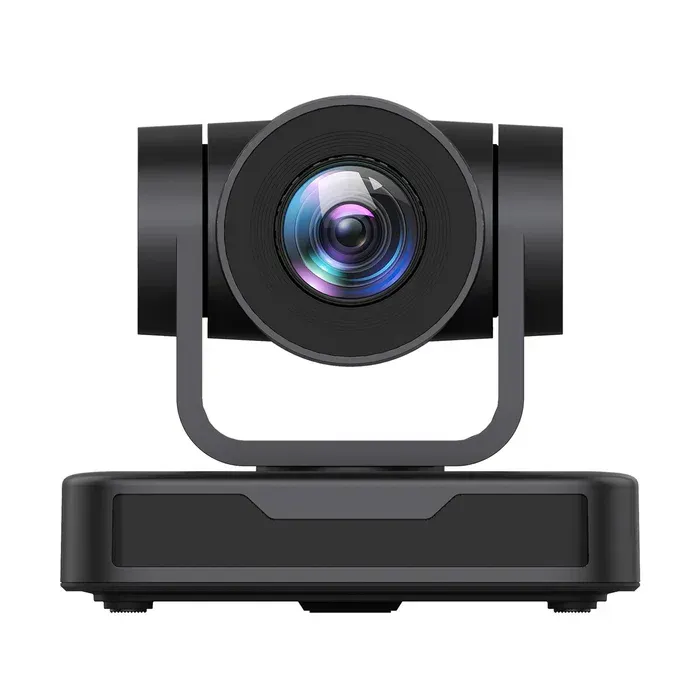

DVDO-C8-1-B
- High quality 1/2.9 inch CMOS sensor
- Full HD 1920x1080 resolution with frame rate up to 30fps
- Optical zoom: 10X
- Digital zoom: 10X
- Advanced auto focus technology: fast, accurate and stable
- Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
- Low noise CMOS produces high SNR image
- Control interface: RS485, RS232 (cascade connection)
- Multiple control protocols: VISCA, PELCO-D, PELCO-P with automatic protocol identification
- Highly accurate step driving motor allows extremely quiet Pan & Tilt motion
- Up to 255 presets (10 presets via remote control)

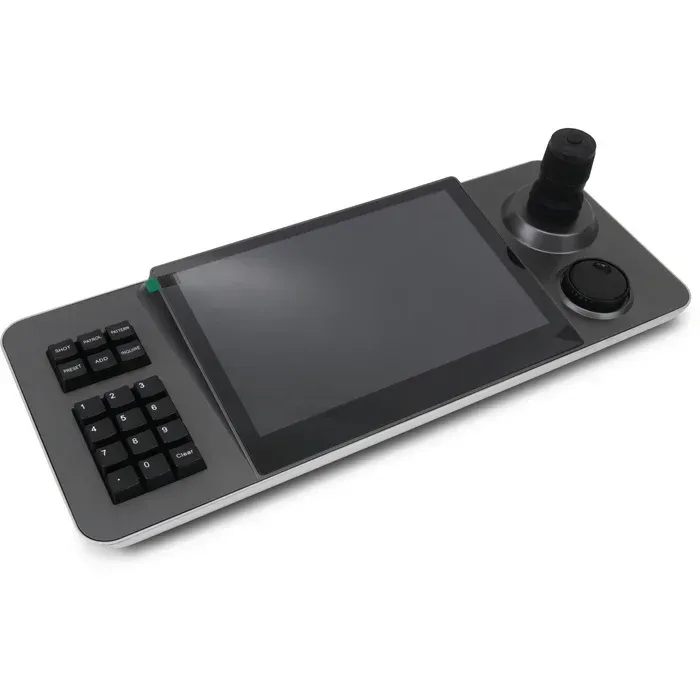

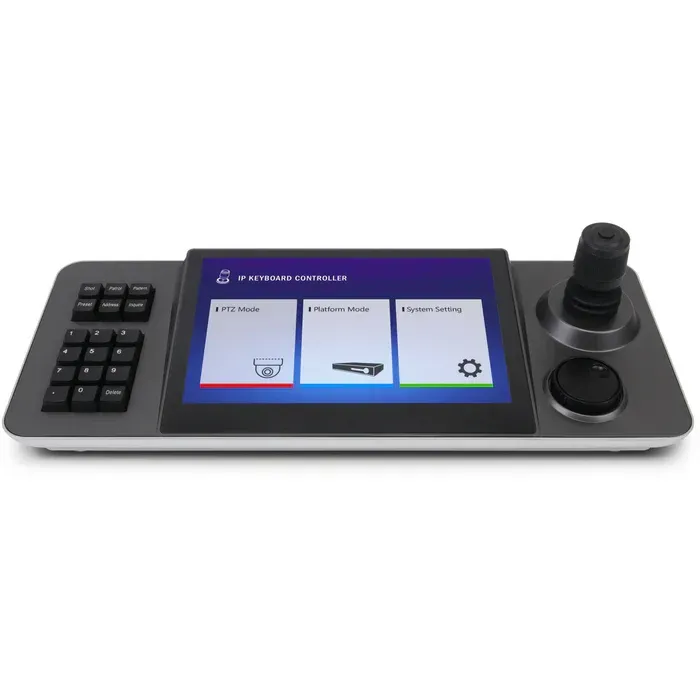

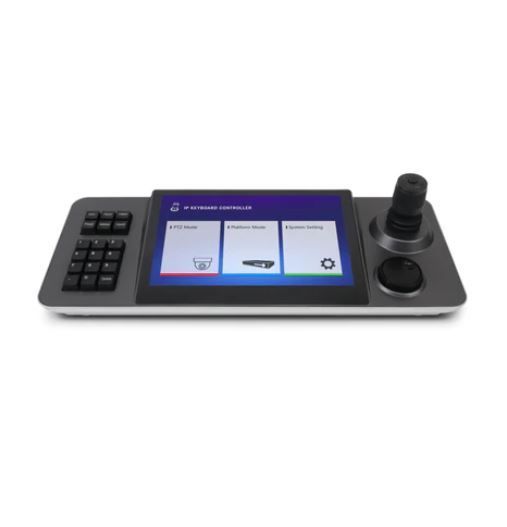

DVDO-Camera-Ctl-1
• 10.1-inch capacitive touch screen.
• Android 6.0 operating system.
• H.265/H.264 decoding, up to 4 screen partitions.
• Supports viewing images on the touch screen or external display via HDMI.
• Network access to full range of PTZ cameras.
• PTZ control, preset, cruise, track setting and recall.
• Supports ONVIF, Pelco-D, Pelco-P and Visca protocols.
• Controls up to 1024 cameras.
• Supports external mouse

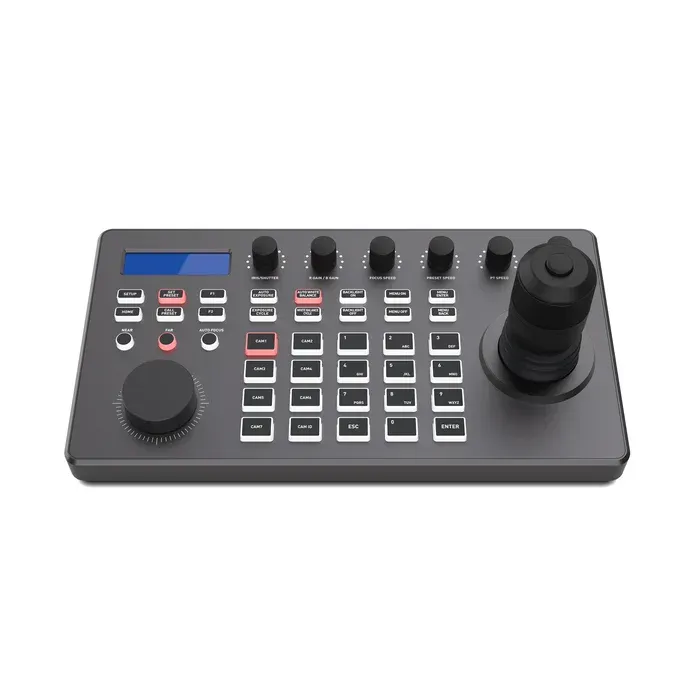

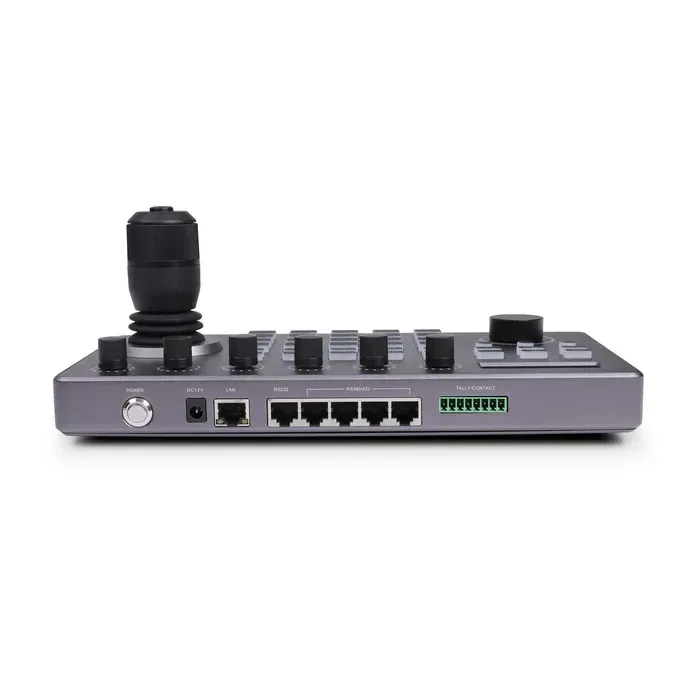

DVDO-Camera-Ctl-2
- Controls up to 255 PTZ cameras over IP and/or serial (RS232/RS422/RS485) within the same network
- Supports NDI, ONVIF, Visca & Pelco protocols and auto-discovery
- 4D joystick (up/down, left/right, zoom in/out, confirm) with variable speed for Pan, Tilt and Zoom controls
- Additional circular knob for zoom adjustment
- 7 buttons for direct camera selections
- Other controls include PTZ speed, Focus, Iris, White Balance and R/B color correction
- Web-based GUI for easy setup and configuration
- Tally control function
- Two power options: PoE or external 12V power supply

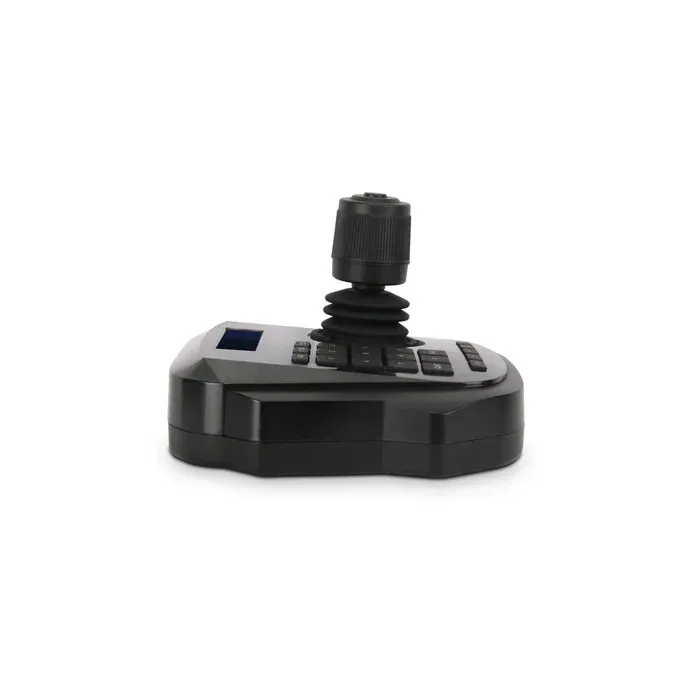

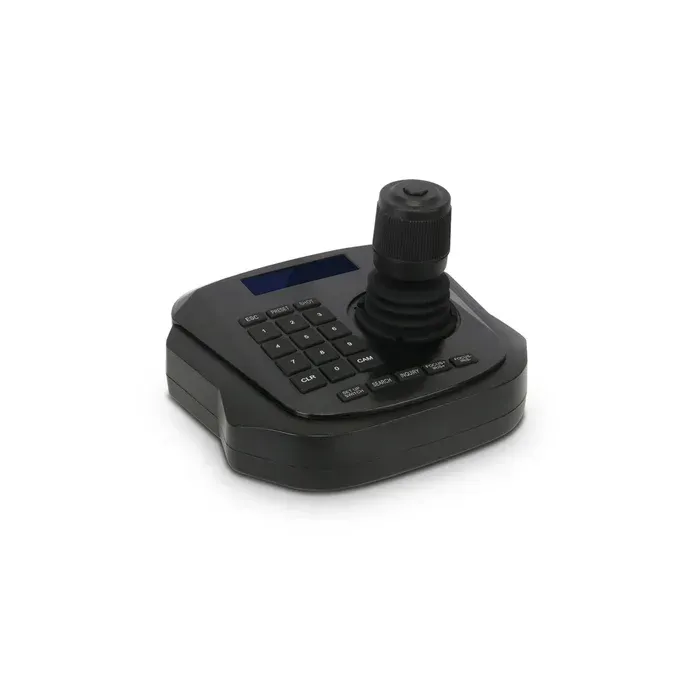

DVDO-Camera-Ctl-Mini
- 4D joystick (up/down, left/right, zoom in/out, confirm) for pan, tilt and zoom control of the cameras
- LCD display & soft keyboard with 20 buttons
- Controls up to 1,024 PTZ cameras over IP
- Controls include focus, zoom, iris, preset, cruise,…
- Saves & recalls up to 10 position presets for each camera
- Supports ONVIF protocol and auto-discovery
- Cameras can be added when controller is offline
- Web-based GUI for easy setup and configuration

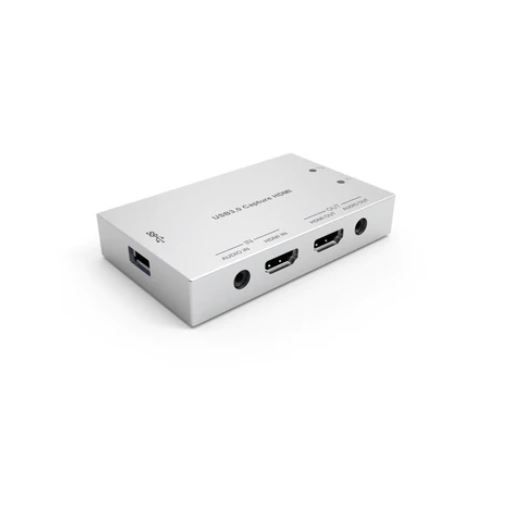

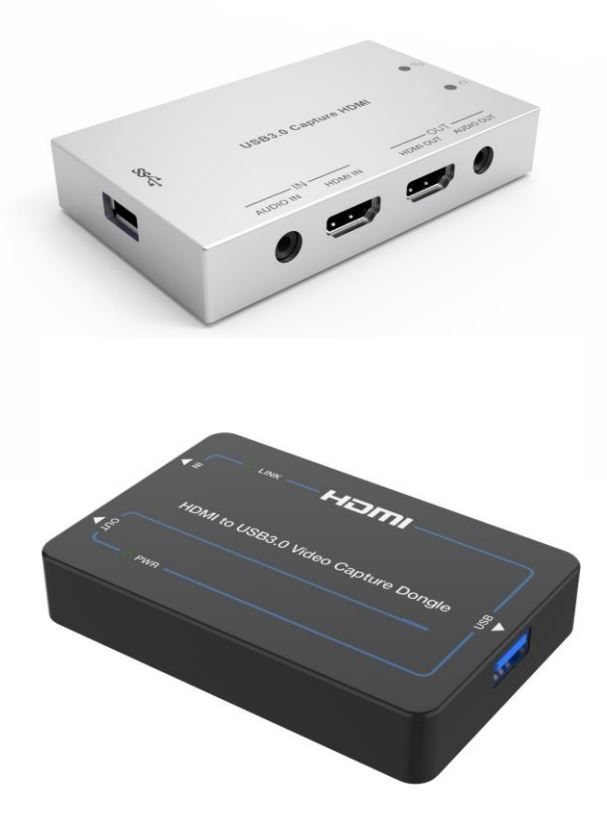

DVDO-USB 3.0-Capture and Capture-Plus
• HDMI to USB video capture dongles
Capture Plus:
• Supports HDMI video input capture and HDMI loop output
• Supports resolution 480i~1080p60Hz format video capture
• Supports resolution 4K2K@60Hz (Down Scaler)->1080p60Hz video capture
• Attention: 4K2K@50/60Hz 4:2:2 resolution NOT supported down scaler function
• HDMI input and HDMI loop output supports HDMI 2.0, HDCP 2.2, resolution the maximum up to 4K2K@60Hz(4:4:4)
• Supports analog stereo audio input. (Double audio inputs selected to capture audio)
• Supports analog stereo audio extract output from HDMI source
• Compatible with Windows, Linux, OS X operating systems
• Compatible with USB3.0 about transmission rate up to 300~350MB/s
• Compatible with VLC, OBS, XSPLIT and AMCAP etc. PC capture software
• Simple plug and play, no drive and setting installation required.
